product description：

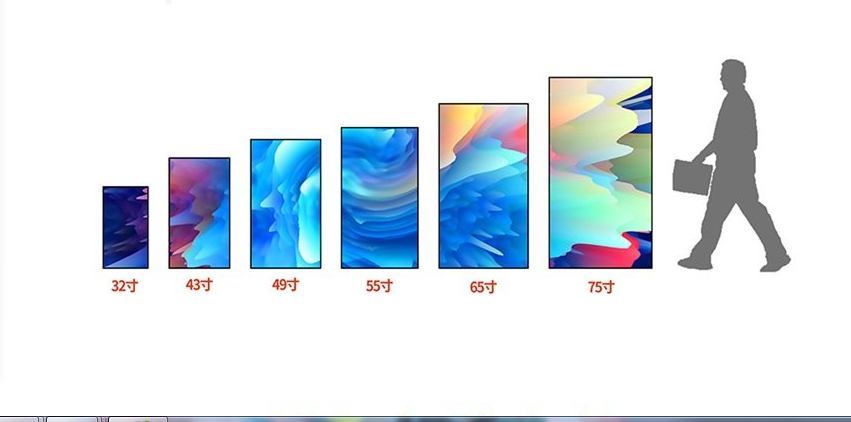

Size: 32 inch / 43 inch / 49 inch / 55 inch / 65 inch / 75 inch

Intelligent patrol monitoring system:

Temperature monitoring: the rotation speed and running state of each fan inside the whole machine can be monitored, and the initial starting temperature value and the maximum rotation speed temperature value of each group of fans in front of/behind the screen can be set and adjusted by regions, so as to realize intelligent temperature control. Range: ≤-35~, ≥96℃

Man-made damage monitoring: if someone knocks or collides with the equipment, the monitoring system will automatically report to the server. Range: ≥ 8kg±5%, adjustable from 0.1KG~20KG.

Anti-theft monitoring: the door of the equipment is pried by someone, and the monitoring system automatically reports to the server. Value range: ≤ 20mm±5% adjustable

Smoke monitoring: If there is an accident inside the equipment and smoke is generated, the monitoring system will automatically report it to the server. Adjustable range ≥450~10000PM

Flooding monitoring: When there is heavy rain in the installation place of the equipment, when the water level reaches the dangerous level, the monitoring system will automatically report to the server and cut off the power supply. Prevent personal injury caused by heavy rain flooding and electric leakage. Range: ≤0.1m adjustable

The information release system is perfectly integrated with the intelligent patrol monitoring system for real-time monitoring: the docking protocol of the patrol monitoring system can be provided to realize the automatic alarm of the running state of outdoor high-brightness LCD digital signage.

Multi-function, integrated into one:

1.high brightness of 2000cd/㎡, customizable brightness to 3000cd/㎡.

2.Adjust the screen brightness with the external brightness.

3.High temperature resistance, 24/7 continuous work

4.Android quad-core operation, which can release information remotely, and time switch machine.

5.The sound quality is comparable

6.Double anti-theft and anti-magnetic interference signal

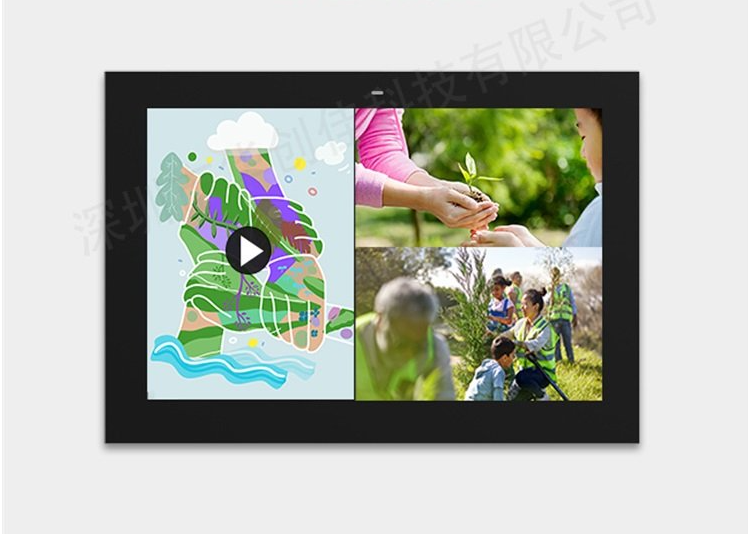

7.Intelligent split screen, split into two, split into three, split into four and so on.

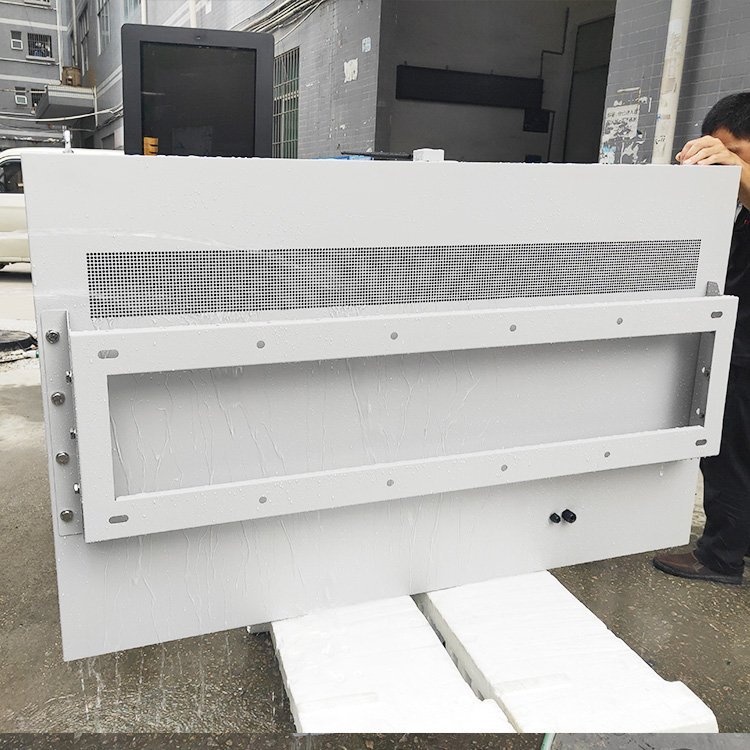

8. The front 6mmAR tempered glass，93% transmittance is explosion-proof and glare-proof, heat-insulating and high-light-transmitting, and its shell is made of galvanized steel plate with an average thickness of 1.5mm, which is strong and beautiful.

Product Details

Function Parameter

Panel argument

working conditions

Optional configuration
