$5,600.00 1-49 sets
$5500 50-99 sets
$5400 ≥100 sets
SYAR-86-outdoor，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，Standing,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv
product description

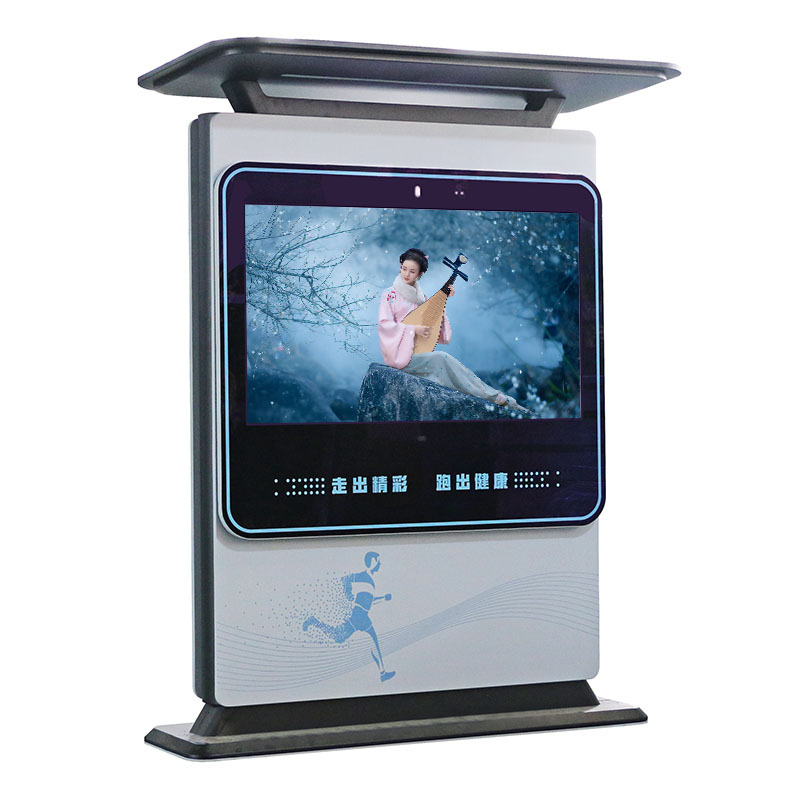

panel size: 75 inch / 86 inch
Multi-function, integrated into one:
1.high brightness of 2000cd/㎡, customizable brightness to 4000cd/㎡.
2.Adjust the screen brightness with the external brightness.
3.High temperature resistance, 24/7 continuous work
4.Android quad-core operation, which can release information remotely, and time switch machine.
5.The sound quality is comparable
6.Double anti-theft and anti-magnetic interference signal
7. The front 6mmAR tempered glass,93% transmittance is explosion-proof and glare-proof, heat-insulating and high-light-transmitting, and its shell is made of galvanized steel plate with an average thickness of 1.5mm, which is strong and beautiful.
Product Details
function Parameter
product model | SYAR-86-outdoor |
PC | 1037，H61、H81 |
Heat dissipation mode | Air cooling heat dissipation |
Random Access Memory | 2G |
internal storage(GB) | 8G-32G |
Program update mode | long-range drive，USB flash drive |
Drive board | stand-alone version, network version |
Audio | 8Ω 10W |
AR camera brand | Logitech |
Component of intelligent temperature control system | EBM centrifugal fan(Fan cooling) |
Electrical parts | timer, lightning arrester, triangular analog-digital plug, wiring terminal |
power box | Taiwan Mingwei power box |
Appearance color | DuPont outdoor sand grain grey/black/red |
protective glass | 6 mm AR toughened glass |
Installation mode | standing type |
package | wooden box packing (wooden box can be satisfied with the export requirements) |
panel parameters
panel type | 86 inch LCD panel |
support colors | 16.7M |
luminance(cd/㎡) | 2000~4000 |
aspect ratio | 16：9 |
contrast Ratio | 3500：1 |
backlight Type | LED backlight |
view angle（H/V) | 178°/178° |
Response Time(ms) | 6 |
Service life (hours) | 50000 |
resolution ratio | 3840*2160 |
working conditions
IP Grade | IP65 |
Rated power (w) | 1400 |
Input Powe | AC220V |
rumble | < 65db |
Operation Temperature | -30℃—+50℃/-40℃—+55℃ |
Humidity Storage | 5%—90% |
optional configuration
touch | infrared touch frame, nanometer touch film |
network | LAN/WIFI/4G |
