$2,700.00 1-49 sets
$2600 50-99 sets
$2500 ≥100 sets
SYOK-55-outdoor，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，Standing,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv
product description：
Size: 43 inch / 55 inch / 65 inch
Features:

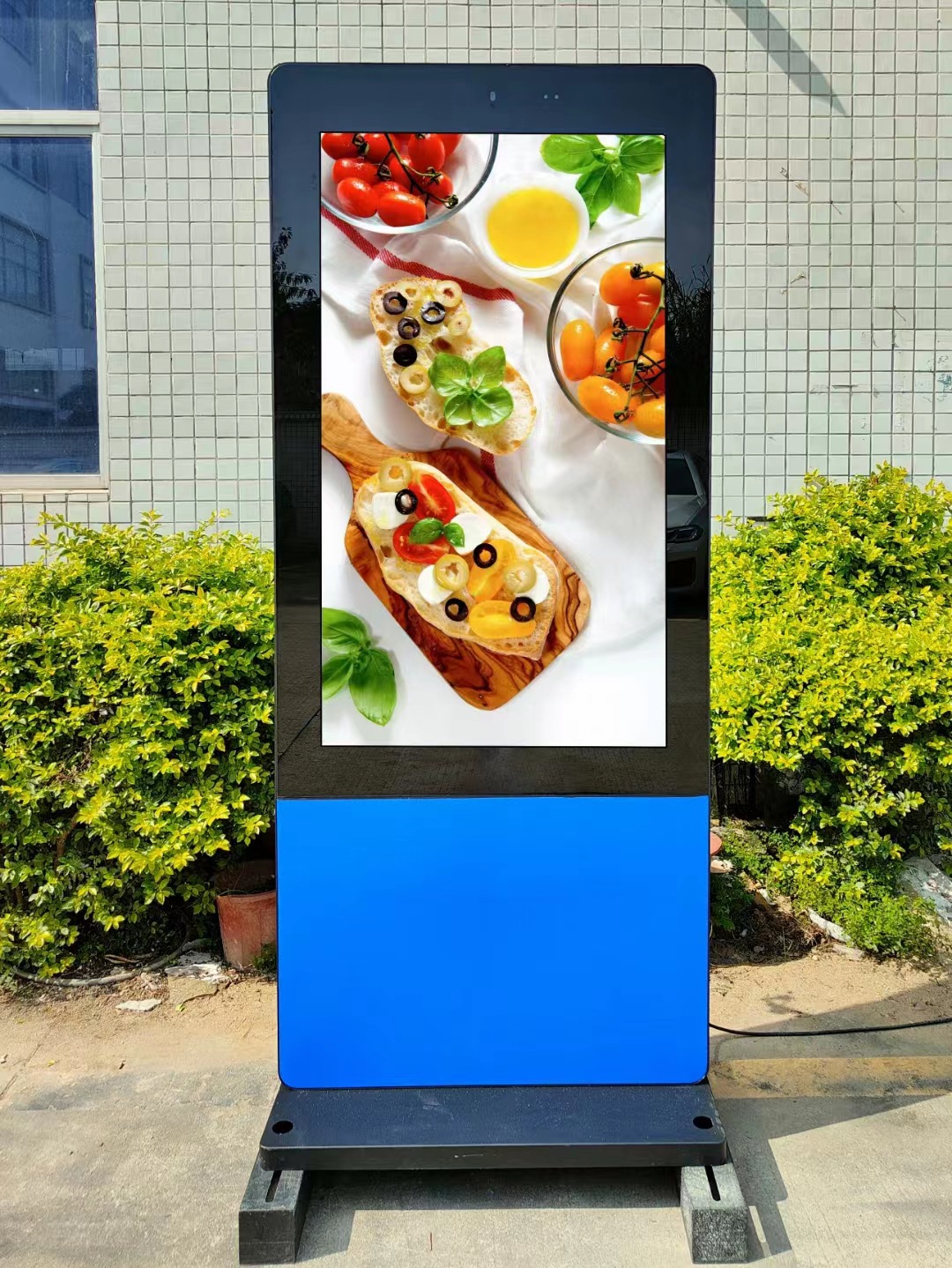

1.55 inch High Brightness Ultra-thin Outdoor Advertising LCD Display, The fuselage thickness is only 150mm.
2.Dustproof, waterproof, Anti-corrosion, lightning protection and anti-theft.
3.High-definition intelligent temperature control.
Working 7 days/24 hours.
4.IPS high-definition visual angle.
5.waterproof, moisture-proof, anti-theft, anti-glare,without fear of any bad weather.
6.The LCD screen has 1080P HD picture quality.
7.2000cd/㎡ brightness, brighter colors and more vivid pictures.
8.Intelligent split screen, split into two, split into three, split into four and so on.
9.Applicable to CDB Central Plaza, commercial organizations, public transportation,real estate and other places.
Product Details
Function Parameter
product model | SYOK-55-outdoor |
mainboard | Android dual core |
Audio format | MP3,23bit linear PCM7.1 |
internal storage(GB) | 8-32 |
Program update mode | long-range drive，USB flash drive |
Networking mode | RJ45 interface, WIFI,4G (optional) |
resolution ratio | 1920*1080 |
Audio output power(w) | 10 |
Panel argument
Panel type | 55 inch LCD panel |
Support Colors | 16.7M |
Screen Size | 210*680 mm |
Luminance(cd/㎡) | 2000 |
Aspect ratio | 16：9 |
Contrast Ratio | 3500：1 |
Backlight Type | LED backlight |
view angle（H/V) | 178°/178° |
Response Time(ms) | 6 |
Service life (hours) | 50000 |
resolution ratio | 1920*1080 |
working conditions
IP Grade | IP55 |
product size(h*w*d mm) | 2100*890*150 |
Exterior color | black/white/grey/red/blue |
electric/power source（w) | ≤400 |
Input Powe | AC220V |
rumble | < 65db |
Operation Temperature | -30℃—+50℃ |
Store Temperature | -10℃—+60℃ |
Humidity Storage | 5%—100% |
Optional configuration
mainboard | Stand-alone/Android/computer board |
touch | G+F touch film |
network | LAN/WIFI/4G |
