$1,300.00 1-49 pieces
$1250 50-99 pieces
$1200 ≥100 pieces
CNSY-86-outdoormodule，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，High Brightness module,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv
Basic information | Type | CNSY-86-outdoormodule |

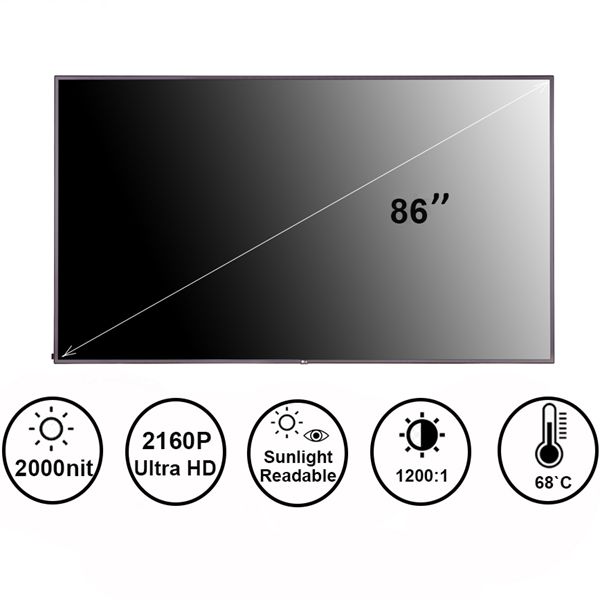

Screen size | 86 inch | |
Working Temp | 0-50℃ | |
Storage Temp | -20-60℃ | |
Environmental humidity | < 90% RH | |
Structural characteristics | Display scale | 0.672916667 |
Point spacing mm (H and V) | 0.2485 * 0.7455 | |
Resolution | 3840 * 2160 | |
Display area mm (H and V) | 1895.04 * 1065.96 | |
Visible area mm (H and V) | 1897.0 * 1068.0 | |
Appearance size mm (H and V thickness) | 1928 * 1099 * 64.5 | |
backlight | LED backlight | |
Display mode IPS | always black | |
Characteristic | Luminance(cd/㎡） | 2000 |
Brightness management | automatic sensitization | |
Contrast ratio | 1200: 1 | |
Display color | 16.7M | |
response time(ms) | 8 | |
Viewing angle | 178°/178° | |
Electronic characteristic | scanning frequency (Hz) | 60 |
Power (w) | 450 | |
Supply voltage (V) | 24 | |
Signal interface type | LVDS | |
Optional | power board and image driver board |
-
