High Brightness LCD Module

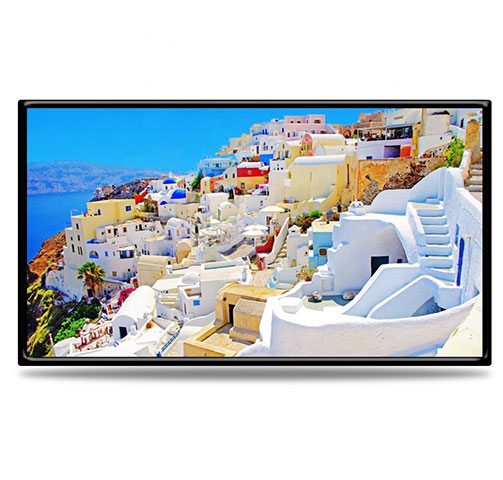

32 inch High Brightness LCD Module(2000cd/㎡)

$400.00 1-49 pieces

$390 50-99 pieces

$380 ≥100 pieces

Payment Type：L/C,T/T,D/P,Paypal,Money Gram,Western Union

Incoterm：FOB,CFR,CIF,EXW,FCA,CPT,CIP

Transportation：Ocean,Land,Air

CNSY-32-outdoormodule，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，High Brightness Module,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv

Order online

Parameters of 32 inch highbrightness LCD panel

Basic information	Type	CNSY-32-outdoormodule
	Screen size	32 inch
	Working Temp	0-50℃
	Storage Temp	-20-60℃
	Environmental humidity	< 90% RH
Structural characteristics	Display scale	0.672916667
	Point spacing mm (H and V)	0.117 * 0.519
	Resolution	1920 * 1080
	Display area mm (H and V)	698.4 * 392.85
	Visible area mm (H and V)	700.6 *396.5
	Appearance size mm (H and V thickness)	739.6 * 434.1* 60.5
	backlight	LED backlight
	Display mode IPS	always black
Characteristic	Luminance(cd/㎡）	2000
	Brightness management	automatic sensitization
	Contrast ratio	1400: 1
	Display color	16.7M
	response time(ms)	8
	Viewing angle	178°/178°
Electronic characteristic	scanning frequency (Hz)	60
	Power (w)	129
	Supply voltage (V)	24
	Signal interface type	LVDS
	Optional	power board and image driver board
