$2,300.00 1-49 sets
$2250 50-99 sets
$2200 ≥100 sets
SYAB-43-outdoor，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，push-pull A board,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv

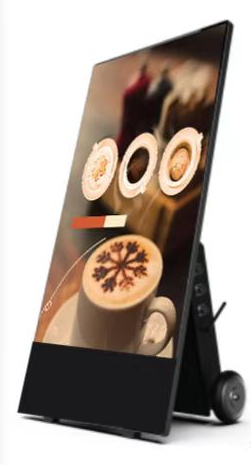

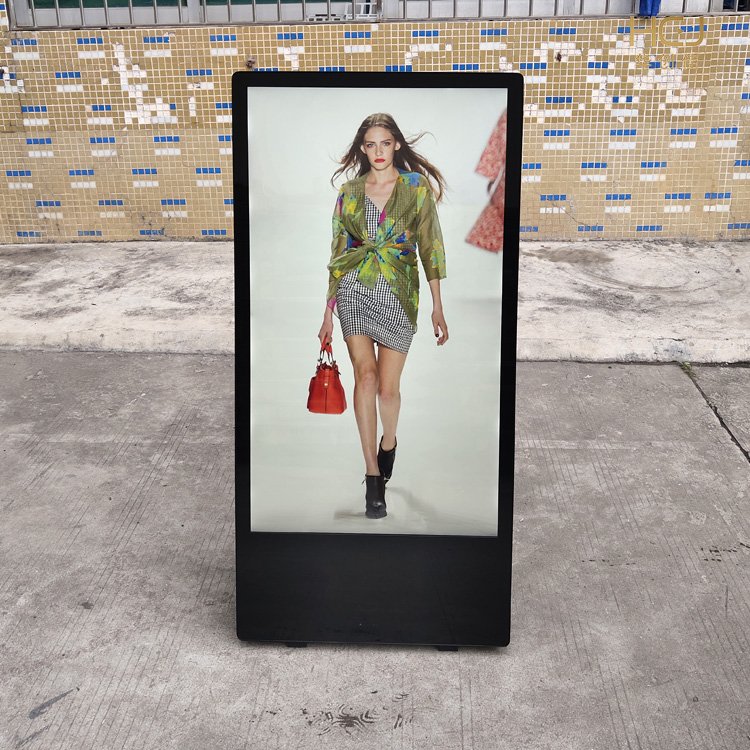

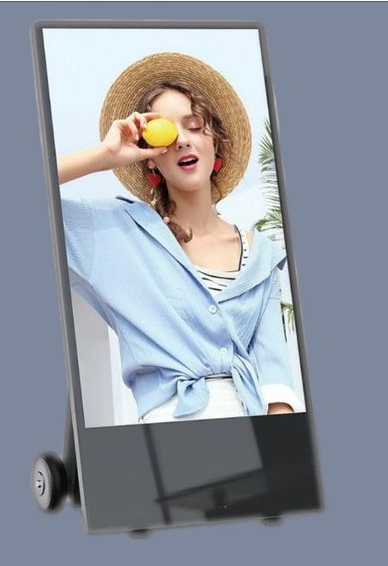

43-inch outdoor mobile LCD water card-battery
Brightness: 500-2000 nits
Size: 43 inch
Material: galvanized steel plate
Color: black, white
Touch: nanometer ten-point touch (optional)
Configuration: stand-alone version, Android version
Selling points of products:
1.It is unplugged, and the lithium battery can run continuously for 12 hours.
2.IP55 grade, all outdoor protection.
3.Full-color HD with 1920*1080 resolution,
4.External speakers
5.The power level is displayed above the battery.
6.Equipped with 6-inch rubber wheels, it can be easily moved anywhere
technical specification
face plate
model | SYAB-43--outdoor |
size | 43 inch |
Pixel | 1920*1080 |
aspect ratio | 16:9 |
Luminance(nits) | 500-2000 |
Contrast ratio | 1000:1 |
Gray scale response time (ms) | 12 |
visible angle(H/V) | 178°/178° |
Backlight type | LED light |
service life(hours) | 30000 |
Power
Power input | lithium battery |
Maximum power (w) | 70 |
Shell
IP Level | IP55 |
sheathing material | galvanized steel sheet |
Glass type | Ultra-toughened glass |

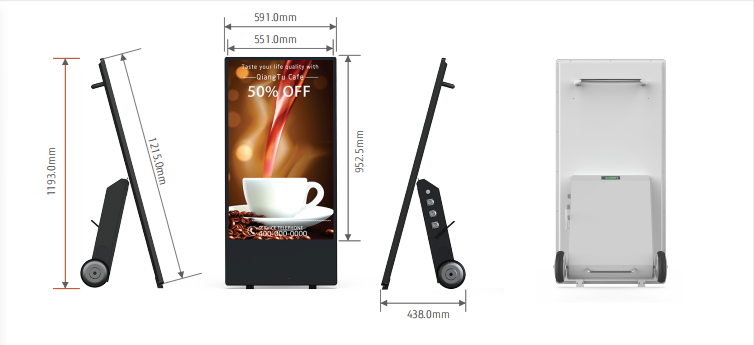

Overall dimensions (w*h*d mm) | 620*1200*470 |
Net weight(kg) | 47 |
operational environment
Working environment | All outdoor |
Working temperature | 0℃—+50℃ |
Working altitude | ≤2000 |
Package
Tare weight(kg) | 64 |
Size (w*h*d mm) | 550*1350*880 |
