$1,600.00 1-49 sets
$1550 50-99 sets
$1500 ≥100 sets
SY2S-43-windowdisplay，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，Standing,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv
product description
Size: 43 inch /49 inch /55 inch

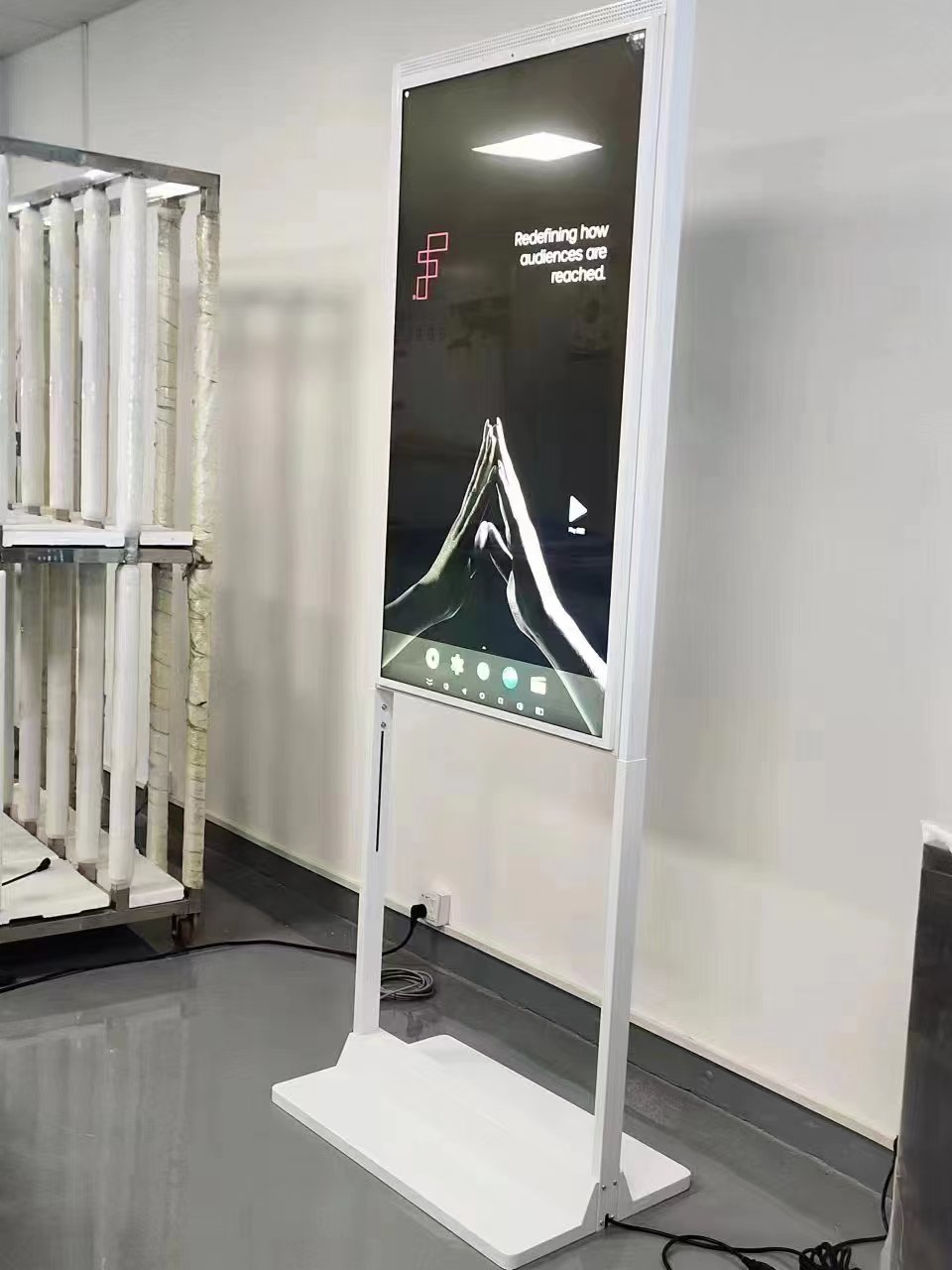

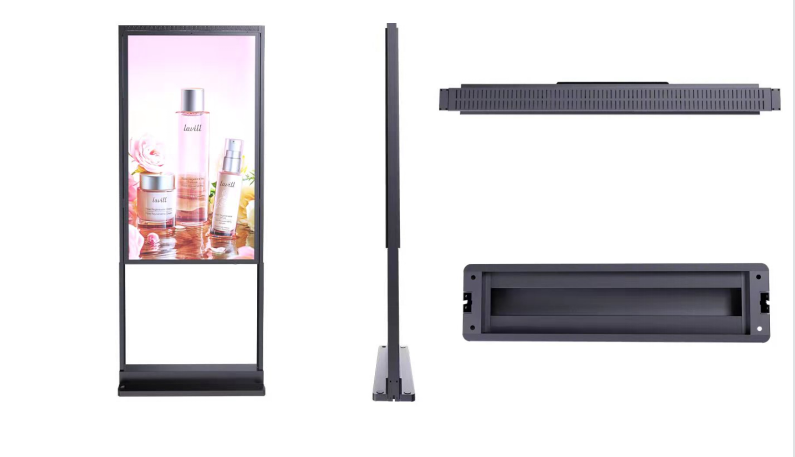

Stand-up window advertising display is a product specially developed for commercial shops, banking institutions and group enterprises to create product images and corporate images. Because of its simple and smooth outline, the A-screen 3000 cd/㎡ faces the shop window, and even though passers-by haven't entered the shop room, they have been deeply attracted by the rich advertisements in the shop window.
When customers pass by, they will stay and look at the contents of the advertisements. Some people will be interested in the products of the store because of the content of the advertisement, and then go into the store. B screen brightness is 700cd/㎡. Watch it in the store, and the experience is comfortable and not dazzling.
Therefore, it not only makes effective use of the window space, but also attracts the attention of people inside and outside the store. The currently developed size is 43 "49" 55 ". We are a source factory with direct wholesale prices and competitive prices. Make good quality and after-sales service.
Through the network, the produced programs will be pushed to the media display terminals distributed all over the country in real time, so that wonderful pictures and real-time information can be perfectly displayed in front of the required masses in all directions in various designated places.
The traditional display brightness (300-350cd/㎡) can't be viewed normally in direct sunlight during the day, and the ultra-high bright screen brightness can reach 3000 cd/㎡.
It can be used freely in harsh conditions such as high light, outdoor and glass windows.
43 inch, 49 inch, 55 inch, 65 inch, single-sided vertical window advertising display can be available.
Product parameters
model | SY2S-43-windowdisplay | |

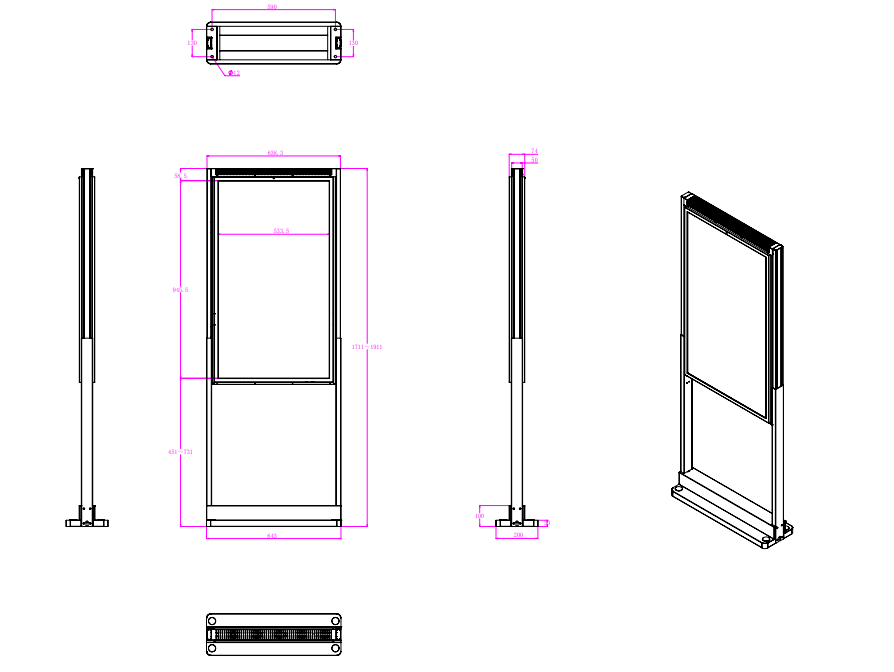

exterior | Appearance color Body size Material of fuselage | Material white panel white frame/custom-made |
638.3*945.5*74(L*W*T) L EX 1008 | ||
aluminium extruded sections | ||
Installation mode | vertical | |
Weight（KG） | 30 | |
package | Packing size（mm) | 144*24.5*96 |
whole machine weighs(KG) | 45 | |
Display | size | 43″TFT LCD |
Display area/scale | 604mm x1073.8mm / 9:16 | |
maximum resolution | 1920x1080 | |
Luminance | 700cd/m2 2500cd/m2(1000-2500cd/m2） | |
Contrast ratio | 1200:1 | |
Viewing angle | (up/down/left/right):89°/89°/89°/89° | |
response time | 6ms | |
Color | 16.7M | |
power consumption | 100V~240V AC, ≤260W | |
Main board | Interface | RK3288，CPU 4-core 1.8GHz GPU 4-core Mali-T764 DDR3running memory 2GB storage space 16GB(expandable) 2 USB external devices 4 USB built-in 1 SD 1 RJ45 1 LVDS、1 HDMI2.0 4K@60HZ Output (to be customized) Support wifi/ Bluetooth/Scalable 3G, 4G |
function | Operating system | Android 5.1.1 |
Menu language | Chinese, Russian, English, French, Spanish, etc | |
Video supported formats | RM/RMVB，MKV，TS，FLV，AVI，VOB，MOV，WMV， | |
Audio support format | MPEG-1 Layers I、II、III2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 | |
Image support format | BMP、JPEG、PNG、GIF | |
Other supported formats | PDF、PPT、SWF、Text, real-time data stream | |
Picture segmentation | Video area, graphic area, rolling subtitles, LOGO area, date area, time area, Week, weather forecast area, real-time picture area, real-time video area | |
system upgrade | SD card update | |
System management mode | Keywords multiuser management, remote management, time switch machine | |
Remote operation mode | Automatic switching on and off, remote updating, editing and playing programs, remote monitoring status. | |
System play mode | Support a variety of playback modes, such as loop, timing, and insertion. | |
system architecture | B/S(Browser/Server) | |
network | Local area network, wide area network、WIFI、3G | |
Built in speaker | Built-in mini double speakers | |
service life(hours) | 50000 | |
Operating Temp | -10℃ ~50℃ | |
Storage Temp | -20℃ ~60℃ | |
Operation Humidity | 5% ~90% | |
Storage temp Humidity | 5% ~90% | |
