$3,300.00 1-49 sets
$3200 50-99 sets
$3100 ≥100 sets
SY2D-43-outdoor，Brand: SANYIN,Certification: Fcc, Ce, Rohs,Types Of: Electric, FrameMaterial: plate metal，Development Ratio: 16:9，Standing,Place Of Origin: China,Warranty Period (Years): 3-Years After-Sales Serv
product description：
Size: 43 inch /55 inch / 65 inch

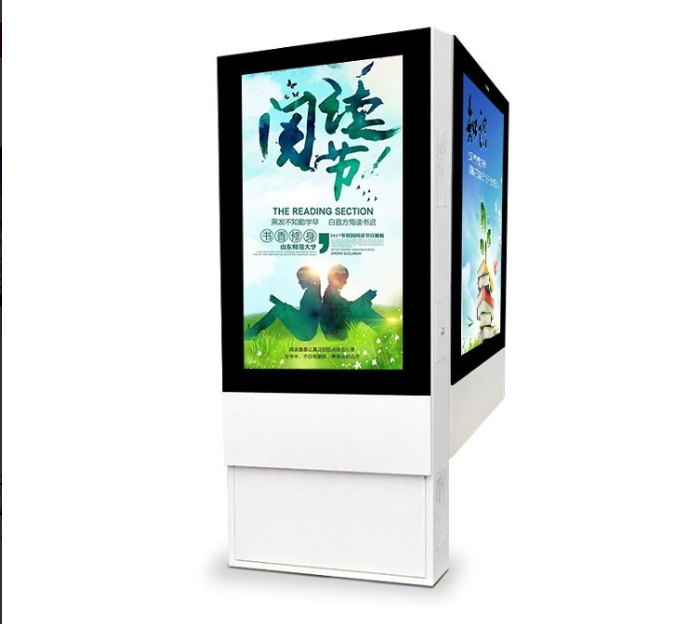

43 "Double-sided vertical outdoor advertising machine,
1.with smooth picture or video playback, non-jamming.
2.metal shell structure, waterproof slot and heat dissipation hole,
3.toughened glass on the surface of LCD screen, high light transmittance of 92%, scratch resistance and high temperature resistance.
4.Double-sided screens are displayed simultaneously and differently.
5. Can play content remotely, switch on and off.
Product Details
Function Parameter
product model | SY2D-43-outdoor |

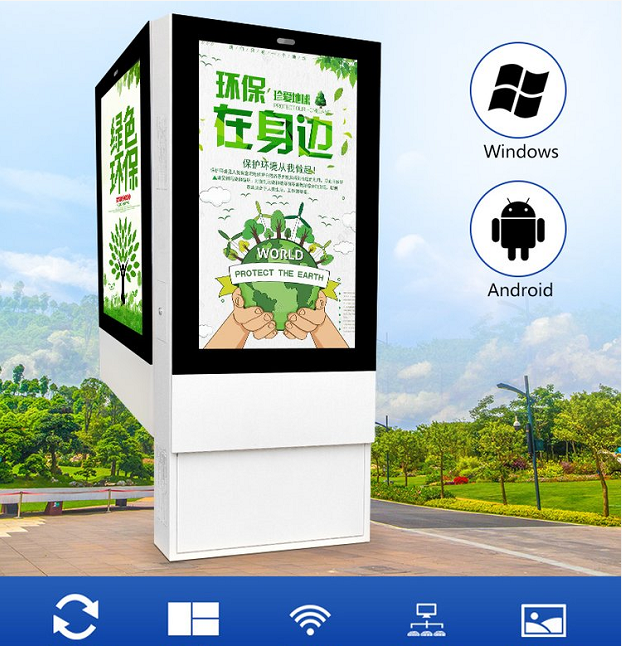

mainboard | Android/windows |
Audio format | MP3,23bit linear PCM7.1 |
internal storage(GB) | 8-32 |
Program update mode | long-range drive，USB flash drive |
Networking mode | RJ45 interface, WIFI,4G (optional) |
resolution ratio | 1920*1080 |
Audio output power(w) | 10 |
Panel argument
Panel type | 43 inch LCD panel |
Support Colors | 16.7M |
Luminance(cd/㎡) | 2000 |
Aspect ratio | 16：9 |
Contrast Ratio | 3500：1 |
Backlight Type | LED backlight |
view angle（H/V) | 178°/178° |
Response Time(ms) | 6 |
Service life (hours) | 50000 |
resolution ratio | 1920*1080 |
working conditions
IP Grade | IP55 |
electric/power source（w) | ≤600 |
Input Powe | AC220V |
rumble | < 65db |

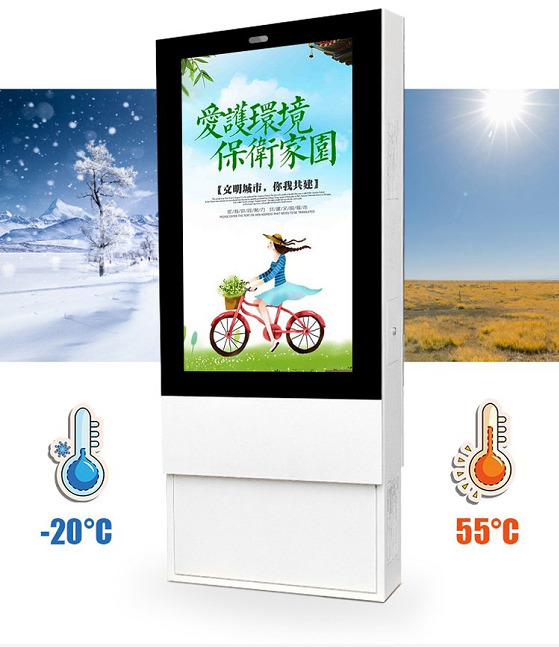

Operation Temperature | -30℃—+50℃ |
Store Temperature | -10℃—+60℃ |
Humidity Storage | 5%—100% |
Optional configuration
mainboard | Stand-alone/Android/computer board |
network | LAN/WIFI/4G |
